Brands : BLICKLE

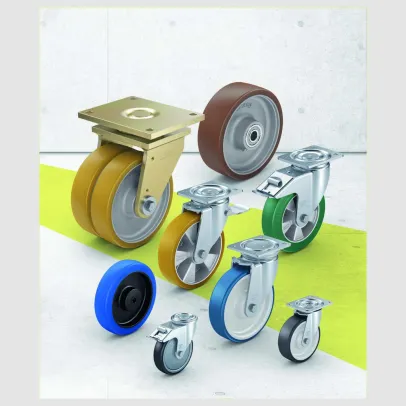

Wheels and castors with polyurethane tread

Castors and Wheel

Wheels and castors with polyurethane tread are divided into 2 varian
1. Standard polyurethane, consist of :
• Thermoplastic polyurethane (TPU)
Thermoplastic injection-moulded polyurethane (TPU) based on polyesterpolyol, diisocyanate and glycol. This is vibration-absorbing, non-marking, non-staining and highly abrasion-resistant, while also providing good floor preservation. The tread is also resistant to a wide range of aggressive substances, although it has only limited resistance to hot water or steam.The TPU tread is combined with nylon wheel centres, which have a variety of characteristics. 3 varians for this type are : PATH, POTH, POTHS
• Polyurethane elastomer Blickle Extrathane
The Extrathane® tread is used in combination with a variety of wheel centres. The materials used for these wheel centres are aluminium, steel and cast iron. Different wheel centres provide different load capacities.The tread is highly abrasion-resistant and has a high resistance to cut and tear propagation. 5 varians for this type are : ALTH, SETH, VSTH/GTH, ALST, GST

2. Premium polyurethane, consist of :
• Polyurethane elastomer Blickle Besthane
Besthane® treads have 40% lower rolling and swivel resistance than the other polyurethane treads.
Besthane® tread also provides a particularly high level of dynamic load resistance, which is particularly useful when transporting sensitive materials. The Besthane® series also covers a huge range of wheel diameters of up to 1000 mm. Besthane® is also used on the GBN series of drive wheels with hub keyway, the GBA series of hub fitting wheels and the GSPOB series of hydrolysis resistant cast nylon wheel centres. 2 varians for this type are :
ALB, ASB/GB
• Polyurethane elastomer Blickle Besthane Soft
The casted tread is used with either an aluminium or nylon wheel centre. The nylon version is also hydrolysis resistant. The formula was optimised until Besthane®Soft provided the desired characteristics: exceptionally high operational comfort, a high level of floor surface preservation, low-noise operation and a particularly high dynamic load capacity.
The tread is frequently used for systems or transport units in the automotive industry, industrial trucks, machinery and machining industry. 2 varians for this type are : POBS, ALBS
• Vulkollan
Vulkollan® wheels have outstanding mechanical properties and are therefore commonly used in driverless transport systems, conveyor systems and machine and systems engineering applications as drive wheels, load rollers or guide rollers. In addition to providing a high dynamic load capacity, it is both non-marking and non-staining. The colour may change slightly over time if the tread is exposed to sunlight (UV). Vulkollan® is resistant to a wide range of aggressive substances, with the exception of hot water or hot air with a high humidity level. Varian for this model only one, it is GVU

Need help selecting the right product ?

(+62) 21 - 628 6413

1. Thermoplastic polyurethane (TPU) :
1.1 PATH series : Wheels with thermoplastic polyurethane tread, with nylon wheel centre (150-500 kg)
• Pressed steel castors with top plate, wheel with thermoplastic polyurethane tread, there are 2 varians :
- LE-PATH, B-PATH series : with top plate
- LER-PATH series : with bolt hole
• Pressed steel castors, with top plate, wheel with thermoplastic polyurethane tread, there are 2 varians :
- L-PATH, B-PATH series : medium duty version 150-400 kg
- LK-PATH, BK-PATH, BH-PATH series : heavy duty design 150-500 kg
1.2 POTH series : Wheels with thermoplastic polyurethane tread, with heavy duty nylon wheel centre (200-1000 kg)
• Pressed steel castors, wheel with thermoplastic polyurethane tread, there are 5 varians :
- L-POTH, B-POTH, BH-POTH series : medium duty version, with top plate, 250-500 kg
- LK-POTH, BK-POTH, BH-POTH series : heavy duty design, with top plate, 200-600 kg
- LKR-POTH series : heavy duty design, with bolt hole, 200-350 kg
- LH-POTH, BH-POTH series : heavy duty design, with top plate, wheel Ø 75–125 mm / Ø 150–250 mm; 200-350 kg / 500-900 kg
- LUH-POTH, BH-POTH series : heavy duty design, enclosed, with top plate, 350-800 kg

1.3 POTHS series : Wheels with soft thermoplastic polyurethane tread, with heavy-duty nylon wheel centre (200-550 kg)
• Pressed steel castors, wheel with thermoplastic polyurethane tread, there are 3 varians :
- L-POTHS, B-POTHS series : medium duty design, with top plate, 200-400 kg
- LK-POTHS, BK-POTHS, BH-POTHS series : heavy duty design, with top plate, 200-550 kg
- LUH-POTHS, BH-POTHS series : heavy duty design, enclosed, with top plate, 275-550 kg

1.4 ALTH series : Heavy-duty wheels with Blickle Extrathane polyurethane tread, with aluminium wheel centre (200-1250 kg)
• Pressed steel castors, wheels with Blickle Extrathane polyurethane tread, there are 5 varians :
- L-ALTH, B-ALTH, BH-ALTH series series : medium duty version, with top plate, 200-500 kg
- LK-ALTH, BK-ALTH, BH-ALTH series series : heavy duty design, with top plate, 200-500 kg
- LKR-ALTH series : heavy duty design, with bolt hole, 200-350 kg
- LH-ALTH, BH-ALTH series : heavy duty design, with top plate, 200-900 kg
- LHZ-ALTH series : heavy duty design, with stem,750-900 kg
- LUH-ALTH, BH-ALTH series : heavy duty design, enclosed, with top plate, 650-1000 kg
• Welded steel castors, wheels with Blickle Extrathane polyurethane tread
- LO-ALTH, BO-ALTH series : heavy duty design, with stem, 650-1200 kg

1.5 SETH series : Heavy-duty wheels with Blickle Extrathane polyurethane tread, with welded steel wheel centre (500-1350 kg)
• Pressed steel castors, wheels with Blickle Extrathane polyurethane tread, there are 5 varians :
- LH-SETH, BH-SETH series : heavy duty design, with top plate, 500-900 kg
• Welded steel castors, wheels with Blickle Extrathane polyurethane tread
- LO-SETH, BO-SETH series : heavy duty design, with top plate, 500-1200 kg
- LS-SETH, BS-SETH series : heavy duty design, heavy duty swivel head, 500-1350 kg

1.6 VSTH/GTH series : Heavy-duty wheels with Blickle Extrathane polyurethane tread, with steel or cast iron wheel centre.
• Heavy-duty wheels with Blickle Extrathane polyurethane tread, with steel or cast iron wheel centre.
- VSTH, GTH series : wheel Ø 35–200 mm, with steel or cast iron wheel centre, 100-1600 kg
- GTH series : wheel Ø 250–1000 mm, with cast iron wheel centre, 1250-30000 kg
• Pressed steel castors, wheels with Blickle Extrathane polyurethane tread, there are 2 varians :
- LH-VSTH, BH-VSTH, LH-GTH, BH-GTH series : heavy duty design, with top plate, 280-900 kg
- LUH-GTH, BH-GTH series : heavy duty design, enclosed, with top plate, 700-1000 kg
• Welded steel castors, wheels with Blickle Extrathane polyurethane tread
- LO-GTH, BO-GTH series : heavy duty design, 700-1250 kg
- LS-GTH, BS-GTH series : heavy duty design, heavy duty swivel head, 700-12000 kg
- LOD-VSTH, LOD-ALTH, LOD-GTH, BOD-VSTH, BOD-ALTH, BOD-GTH series : twin wheels heavy duty castors, 500-900 kg
- LSD-VSTH, BSD-VSTH, LSD-GTH, BSD-GTH series : twin wheels castors, heavy duty swivel head, 520-12000 kg

1.7 ALST series : Heavy-duty wheels with Blickle Softhane polyurethane tread, with aluminium wheel centre
• Pressed steel castors, wheels with Blickle Softhane polyurethane tread, there are 5 varians :
- L-ALST, B-ALST, BH-ALST series series : medium duty version, with top plate, 200-500 kg
- LK-ALST, BK-ALST, BH-ALST series : heavy duty design, with top plate, 230-600 kg
- LKR-ALST series : heavy duty design, with bolt hole, 230-350 kg
- LH-ALST, BH-ALST series : heavy duty design, with top plate, 230-850 kg
- LUH-ALST, BH-ALST series : heavy duty design, enclosed, with top plate, 450-750 kg
• Welded steel castors, wheels with Blickle Softhane polyurethane tread
- LO-ALST, BO-ALST series : heavy duty design, 450-850 kg

1.8 GST series : Heavy-duty wheels with Blickle Softhane polyurethane tread, with cast iron wheel centre
• Pressed steel castors, wheels with Blickle Softhane polyurethane tread, there are 2 varians :
- LH-GST, BH-GST series : heavy duty design, with top plate, 450-900 kg
- LUH-GST, BH-GST series : heavy duty design, enclosed, with top plate, 450-900 kg
• Welded steel castors, wheels with Blickle Softhane polyurethane tread there are 3 varians :
- LO-GST, BO-GST series : heavy duty design, with top plate, 450-1200 kg
- LS-GST, BS-GST series : heavy duty design, heavy duty swivel head, 450-2250 kg
- LSD-GST, BSD-GST series : heavy duty tween wheel castors, heavy duty swivel head, 900-6000 kg

1.9 ALB series : Heavy-duty wheels with Blickle Besthane polyurethane tread, with aluminium wheel centre 400-1250 kg.
• Pressed steel castors, wheels with Blickle Besthane polyurethane tread, there are 3 varians :
- L-ALB, B-ALB, BH-ALB series series : medium duty version, with top plate, 250-500 kg
- LK-ALB, BK-ALB, BH-ALB series series : heavy duty design, with top plate, 350-600 kg
- LH-ALB, BH-ALB series series : heavy duty design, with top plate, 400-900 kg
• Welded steel castors, wheels with Blickle Besthane polyurethane
tread there are 3 varians :
- LHD-ALB, BOD-ALB series series : heavy duty design, with top plate, 720-900 kg

1.10 VSB/GB series : Heavy-duty wheels with Blickle Besthane polyurethane tread, with steel or cast iron wheel centre.
• Heavy-duty wheels with Blickle Besthane polyurethane tread, with steel or cast iron wheel centre.
- VSB, GB series : wheel Ø 80–200 mm, with steel or cast iron wheel centre, 450-1600 kg
- GB series : wheel Ø 250–1000 mm, with cast iron wheel centre, 1250-30000 kg
• Pressed steel castors, wheels with Blickle Besthane polyurethane tread, there are 2 varians :
- LH-VSB, LH-GB, BH-GB series : heavy duty design, with top plate, 450-900 kg
- LUH-GB, BH-GB series : heavy duty design, enclosed, with top plate, 800-1000 kg
• Welded steel castors, wheels with Blickle Besthane polyurethane tread, there are 2 varians :
- LS-GB, BS-GB series : heavy duty design, heavy duty swivel head, 800-12000 kg
- LSD-GB, BSD-GB series : heavy duty twin wheel castors, heavy duty swivel head, 810-12000 kg

1.11 POBS series : Heavy-duty wheels with Blickle Besthane Soft polyurethane tread, with nylon wheel centre, 140-500 kg

1.12 ALBS series : Heavy-duty wheels with Blickle Besthane Soft polyurethane tread, with alumunium wheel centre, 2000-1150 kg
• Pressed steel castors, wheels with Blickle Besthane Soft polyurethane tread, there are 2 varians :
- LK-ALBS, BK-ALBS, BH-ALBS series : heavy duty design, with top plate, 230-600 kg
- LKR-ALBS series : heavy duty design, with bolt hole, 230-350 kg
- LH-ALBS, BH-ALBS series : heavy duty design, with top plate, 230-850 kg
- LUH-ALBS, BH-ALBS series : heavy duty design, enclosed, with top plate, 450-750 kg
• Welded steel castors, wheels with Blickle Besthane Soft polyurethane tread, there are 2 varians :
- LS-ALBS, BS-ALBS series : heavy duty design, heavy duty swivel head, 450-1150 kg
- LHD-ALBS, BOD-ALBS series : heavy duty design, heavy duty twin wheel castors, with top plate 360-800 kg

1.13 GVU series : Heavy-duty wheels with Vulkollan tread, with cast iron wheel centre, 450-3000 kg

1. Standard polyurethane
• Thermoplastic polyurethane (TPU) :
- Vibration-absorbing, non-marking, non-staining.
- Highly abrasion-resistant, while also providing good floor preservation.
- The tread is also resistant to a wide range of aggressive substances.
• Polyurethane elastomer Blickle Extrathane :
- The materials used for these wheel centres are aluminium, steel and cast iron.
- Highly abrasion-resistant and has a high resistance to cut and tear propagation.
- Suitable for crossing thresholds and medium speeds.

1. Premium polyurethane
• Polyurethane elastomer Blickle Besthane :
- Less force is required to push or pull transport units carrying heavy loads.
- More focused on ergonomics and occupational safety.
- The tread is typically used for a variety of heavy duty applications on different transport units and machines in the machining and automotive industry.
- Can provide a load capacity of up to 12,000 kg at high speeds of up to 16 km/h.
• Polyurethane elastomer Blickle Besthane Soft :
- Abrasion-resistant, oil-resistant and flexible at low temperatures.
- Exceptionally high operational comfort, a high level of floor surface preservation, low-noise operation and a particularly high dynamic load capacity.
- The tread is frequently used for systems or transport units in the automotive industry, industrial trucks, machinery and machining industry
• Vulkollan :
- Commonly used in driverless transport systems, conveyor systems and machine and systems engineering applications as drive wheels, load rollers or guide rollers.
- Providing a high dynamic load capacity, it is both non-marking and non-staining.
- Resistant to a wide range of aggressive substances, with the exception of hot water or hot air with a high humidity level.
